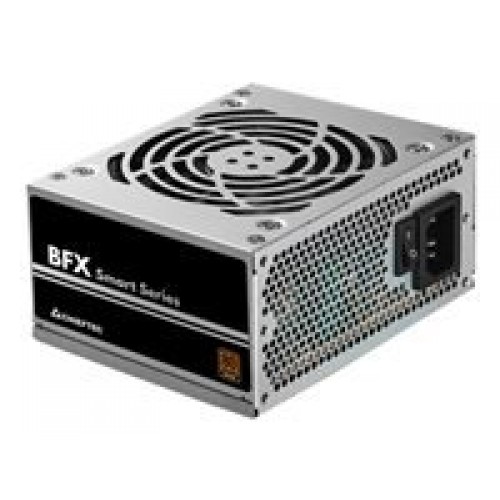

  • CHIEFTEC PSU 350W SFX 80PLUS BRONZE bulk
The BFX Series combines an 80 PLUS Bronze efficiency and a modern technical platform based on DC-DC technology into a compact SFX form factor that ensured reliability and high performance. With the inclusion of a 9cm fan, while keeping the total length of the PSU to 10 cm, the BFX Series stays very compact, while benefitting from a quiet fan operation. All modern protection mechanisms are included for peace of mind.

  • 80 PLUS Bronze certified efficiency
  • DC-to-DC technology
  • OCP and OTP protection

All
Device Type Power supply - active Power Factor Correction (PFC) - internal
Features Over current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection, thermal protection, DC-DC technology, non-modular, Automatic Fanspeed Control (AFC), Surge & Inrush Protection (SIP)
PSU Form Factor SFX
Power Capacity 350 Watt
Product warranty 24 Months Bring-In Warranty
Cooling System 90 mm fan
Compliant Standards CB, RoHS, ErP Ready, EAC, TUV Rheinland
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section
1 x power 8 pin EPS12V with detachable 4 pin ATX12V section
1 x 8 pin PCI Express power with detachable 2 pin section
2 x 4 PIN internal power
3 x 15 pin Serial ATA power
1 x 4 PIN mini-power connector
Output Voltage +3.3, +5, ±12 V
Power Factor (PF) 0.9
Output Current +5V - 18 A
+3.3V - 18 A
+12V1 - 29.16 A
-12V - 0.3 A
+5VSB - 2.5 A
Service & Support Limited warranty - 2 years
Specification Compliance ATX12V 2.3/ SFX12V
80 PLUS Certification 80 PLUS Bronze
Frequency Required 47 - 63 Hz
Input Voltage AC 100-240 V
Width 12.5 cm
Depth 10 cm
Height 6.4 cm
Weight 1 kg

Write a review

Note: HTML is not translated!
    Bad

 Good
Captcha

CHIEFTEC PSU 350W SFX 80PLUS BRONZE bulk

  • Brand: CHIEFTEC
  • Product Code: BFX-350BS
  • Availability: 5

  • 52.30€

  • Ex Tax: 43.22€

0 reviews / Write a review
