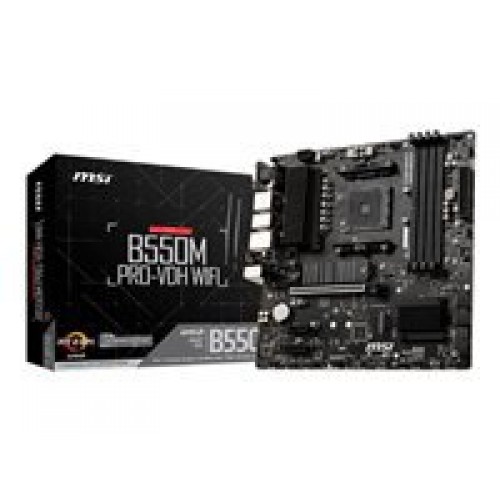

  • MSI B550M PRO-VDH WIFI ATX MB
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

  • Experience more
    MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
  • Core Boost
    Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
  • PCB with thickened copper
    An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
  • Connectivity
    The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers' need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

Visi
Product Type Motherboard - micro ATX
Type HD Audio (8-channel)
Chipset Type AMD B550
Technology DDR4
Features Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support
Processor Socket Socket AM4
Max Processors Qty 1
Compatible Processors Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
Product warranty 36 Months Bring-In Warranty
Included Accessories 2 aerials, case badge, I/O back cover
Max Size 128 GB
Bus Clock 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz
Interfaces 1 x LAN (Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
4 x USB 3.2 Gen 1
1 x PS/2 keyboard / mouse
2 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x VGA
Compliant Standards High Definition Audio
Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)
Cables Included 2 x Serial ATA cable
Registered or Buffered Unbuffered
Max Allocated RAM Size 16 GB
Audio Codec Realtek ALC892
Software Included Drivers & Utilities
Expansion Slots 1 x CPU
4 x DIMM 288-pin
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
Network Controller Realtek RTL8111HN / Intel Dual Band Wireless-AC 3168
Network Interfaces Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
Internal Interfaces 4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C Gen 1 - header
1 x audio - header
1 x serial - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Hardware Features MSI Audio Boost, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, MSI PCIe Steel Slot, MSI Mystic Light Sync
Width 24.4 cm
Depth 24.4 cm

Parašyti įvertinimą

Pastaba: HTML neverčiamas!
    Blogas

 Geras
Captcha

MSI B550M PRO-VDH WIFI ATX MB

  • Gamintojas: MSI
  • Prekės kodas: B550M PRO-VDH WIFI
  • Sandėlyje: 6

  • 129.40€

  • Be PVM: 106.94€
